1. Sea Devil. American Sturgeon class
submarine. Three feet long and completely radio controlled with a
working gas ballast system to dive and surface, working dive planes and
rudder, electronic depth controller and speed control. Built by Robert
McDonald.
| |
2. Sea Devil (bow). Details of the
bow, sail and periscope array.
| |
3. Sea Devil (stern). Details of the seven
bladed brass propeller, rudder and dive planes.
| |
4. Russian Alpha. Four feet long, fully
radio controlled gas ballast system, functioning dive planes and rudder.
Built by Robert McDonald with extensive help from Rustysub.
| |
5. Russian Alpha. Control linkages for the
dive planes, rudder and drive shaft.
|
|
6. Disney
Nautilus radio controlled submarine from the movie "20,000 Leagues under
the Sea". Over four feet long.
Radio controlled with
interior lights, gas ballast system and working rudder and dive planes.
I started this work on this boat years ago but couldn't finish it after my son
was born. Then, my good friend Mario worked on it and this is the
result. AWESOME! It looks even better in person! The
"eyes" light up as well as the interior lights. The work on
the dive planes and rudder system is incredible. This was a very
difficult model to make radio controlled and Mario did a great job doing
it! Check out the long spar. The life boat on the back of the sub
moves to allow access to the interior. This is one great looking
submarine!
Captain Nemo sails again!
|
|
7. ITC Halibut. Amazing 1960 model
kit of the famous submarine Halibut. This is not radio controlled but
will ride on the surface, dive, circle, surface and then fire a Regulus
missile from the front deck! Amazing! Utilizes a series of cams
and pulleys to do it. Very rare kit.
| |
8. Water Tight Cylinder. This is a
view of the Water Tight Cylinder that I use in my radio controlled submarines.
Has three sections. To the left of the picture is the where the motor to
drive the prop, speed controller, and depth controller is located. The
Middle section is where the gas ballast system is located. The right
side is where the receiver and battery is located. Manufactured by Dave
Merriman. You install all the components.
| |

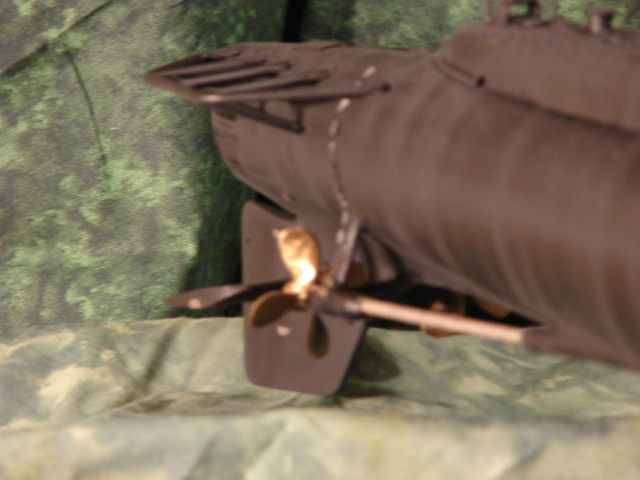

9. USS
Cobia W.W.II Submarine radio controlled: This
is my beautiful radio controlled submarine of the WWII sub USS Cobia as it
looked in 1944-1945. An original picture of it is shown here in the first
picture. The model sub is in 1/72 scale which makes it 52 inches long! It has a water tight cylinder
inside that contains the gas ballast system, engine that powers the twin
propellers, servos to control the bow planes and stern planes and rudder, the
radio receiver with BEC, and the fail safe which automatically blows the
ballast and makes the sub surface if the receiver doesn't get a radio

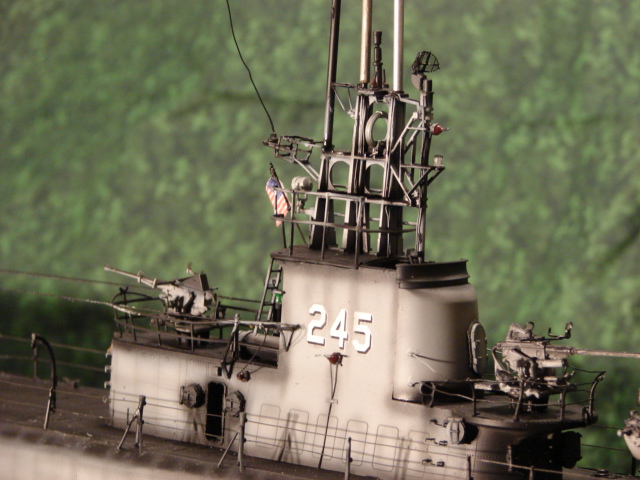

signal. Check out the wonderful detail of the periscope shears!
Look at the wonderful detail of the 5 inch, 25 caliber deck gun, and twin 40
MM Bofor anti-aircraft guns. Even the deck itself is awesome. It's a thing of beauty.
This work of art was built for me by Master Model Builder Mario Grima.
His work is sensational!
|
|
